Reliable Support for Stronger Buildings
Henan Qinyu manufactures complete modular support, seismic bracing and building hardware systems engineered for fast, weld-free installation.
Product Category Navigation Matrix
Strut Channels
YE-series single & back-to-back channels, 21–144 mm, with full load tables.
Seismic Bracing Fittings
Connectors, hinges and braces engineered to GB 50981-2014.
Pipe Clamps
P-type, split, brace-mounted, adjustable and Omega clamps, DN25–DN250.
Embedded Channels & Anchors
Cast-in channels, T-bolts, undercut and wedge anchors.
PV Mounting Structures
Photovoltaic mounting brackets and frames for ground and rooftop solar systems.

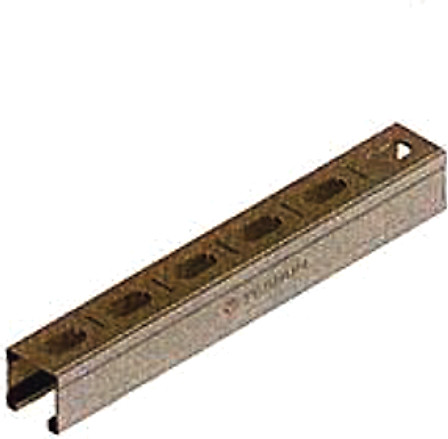

Modular Strut Channels — YE Series (Single & Back-to-Back)
Cold-formed from Q235B steel (GB/T 700), the YE series covers single channels from 21×41 to 72×41 mm and welded back-to-back channels up to 144 mm depth — in pre-galvanized, hot-dip galvanized, epoxy-coated, stainless or zinc-aluminum-magnesium finish.
- Profile Range: YE-21 / 41 / 52 / 62 / 72 single (21–72 mm) and YE-21D – 72D back-to-back (42–144 mm)
- Wall Thickness: 2.0 / 2.5 / 2.75 mm, standard length 3 m or 6 m
- Serrated Groove Edges: effective shear, anti-slip and impact resistance; axial stiffeners increase bending capacity
- Verified Loads: axial compression up to 170 kN (YE-72D @250 mm) with published section property tables

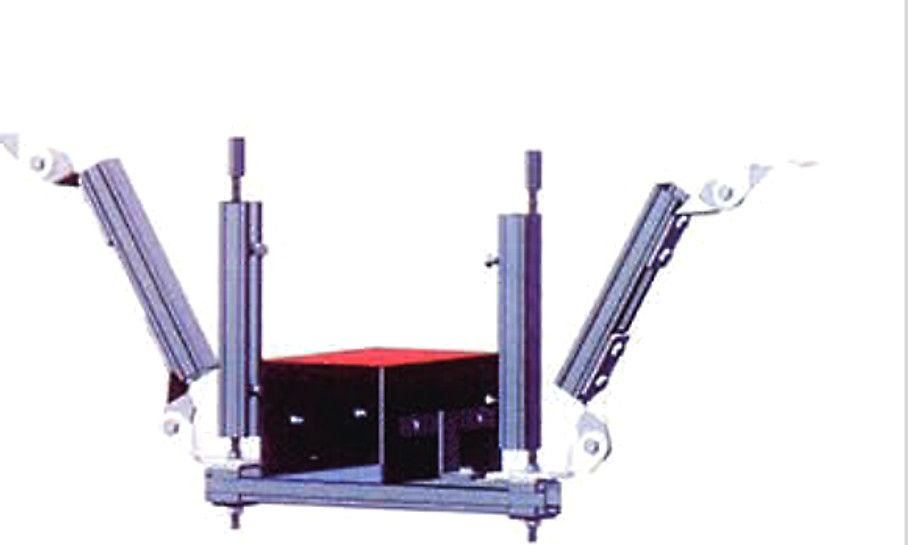

Seismic Support & Pre-Embedded Cast-in Channels
Commercial & industrial MEP: lateral and longitudinal bracing for HVAC ducting, plumbing, electrical conduit and cable trays. Per GB 50981-2014, "all members of a seismic support hanger shall be prefabricated (finished) components" — exactly what the Qinyu YEZ system delivers.
- Anti-seismic connectors YEZ-SP-S / T / L — 13 kN design load, M12
- Adjustable hinges YEZ-AB-A/B and braces — 8.5 kN design load
- Pipe clamps with seismic loading up to 14.9 kN (DN65–DN200)
- Project-specific seismic layout and verification support
Embedded Channels, T-Bolts & Anchors
Hot-rolled cast-in channels (YE-YMC 30/20, 38/23, 53/34) install fast in concrete and fully replace welded fixings — serrated teeth transfer load reliably and resist vibration and seismic loads, with corrosion protection for metro and utility corridor service.
- Straight & curved cast-in channels, rivet Ø8–10, T-bolts M8–M16
- Undercut anchors M12×110 / 130 — 31.6 / 55.7 kN design load
- Wedge anchors M10×90 / M12×100 with national test reports
- Custom channel lengths and curvatures on request
Solar PV Mounting Structures
Photovoltaic mounting brackets, frames and support systems for ground and rooftop solar installations — engineered to project-specific wind, snow and seismic loads and finished for long outdoor service life.
- Module mounting brackets, mid/end clamps and rails
- Ground and rooftop configurations, custom tilt angles
- Hot-dip galvanized / zinc-aluminum-magnesium / anodized finishes
- Engineered for site-specific wind, snow and seismic loads
- Project-specific engineering, BIM takeoff and OEM support
- Coordinates with our seismic bracing and channel systems
Compatible Hardware Ecosystem (Nuts, Base Plates, Clamps)
Angle connectors, splice plates, base plates, cushions, beam clamps, end caps, rod couplers and cantilever brackets — see all accessories →

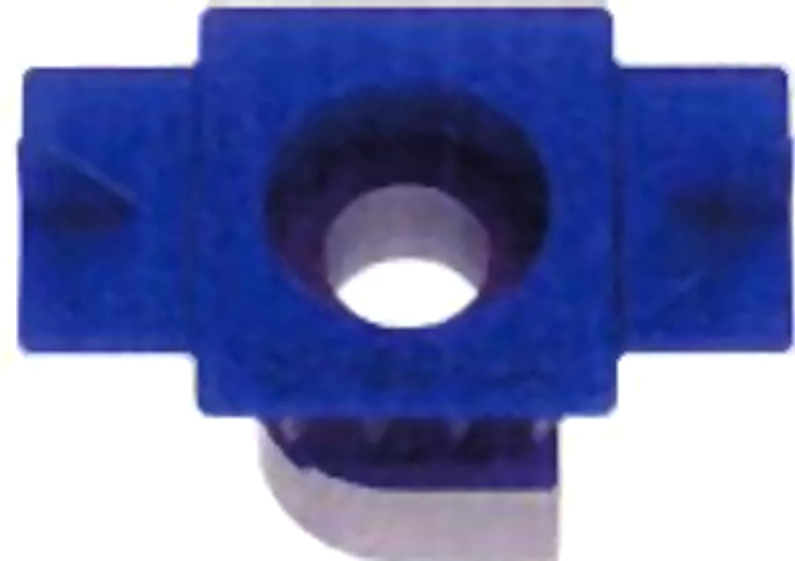

Channel Nuts (YE-CN)
Plastic-wing spring nuts, M10 / M12, 5.0 kN — locks without spin.

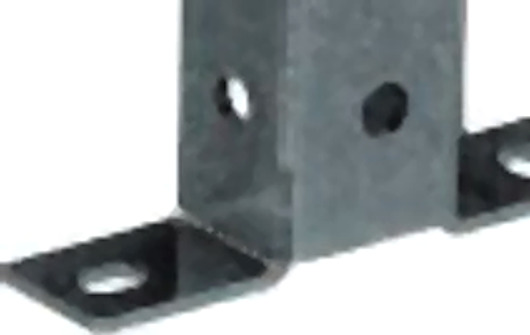

Base Plates (YEP-2)
Multi-face fixing to walls, floors and channels — 7.0 kN.

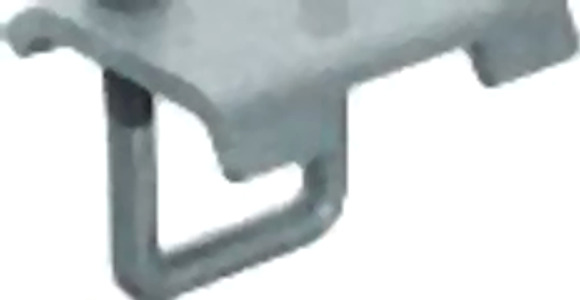

Beam Clamps (YET)
Weld-free, drill-free flange attachment — 3.0 / 4.5 kN.

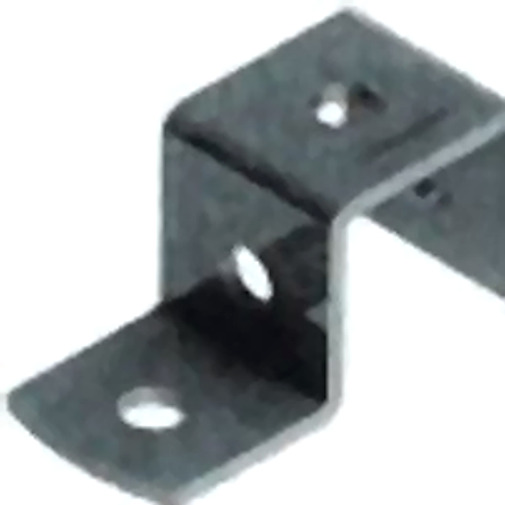

Splice Plates (YEC)
Channel connectors for multi-directional joints — up to 5.0 kN.
Technical Catalog & CAD/BIM File Download Section
The complete Qinyu catalog is free to download — channel dimensions, section properties, load tables, clamp ranges and anchor data in one PDF (56 pages). English datasheets are available on request.
Download Catalog (PDF)
