YE-Series Modular Strut Channels
Single and back-to-back channels roll-formed from Q235B steel with serrated groove edges, axial stiffeners and published load tables — the backbone of every Qinyu support system.
Design Features
- Serrated groove edges — effective anti-shear, anti-slip and impact resistance for bolted connections
- Axial stiffener ribs — higher bending capacity and improved stability
- Marked graduations on the surface for fast, accurate cutting and assembly
- Material: Q235B steel to GB/T 700-2006; stainless SS304/SS316 and zinc-aluminum-magnesium on request
- Finish: pre-galvanized (275 g/m² passivated), hot-dip galvanized (HDG), epoxy-coated or stainless

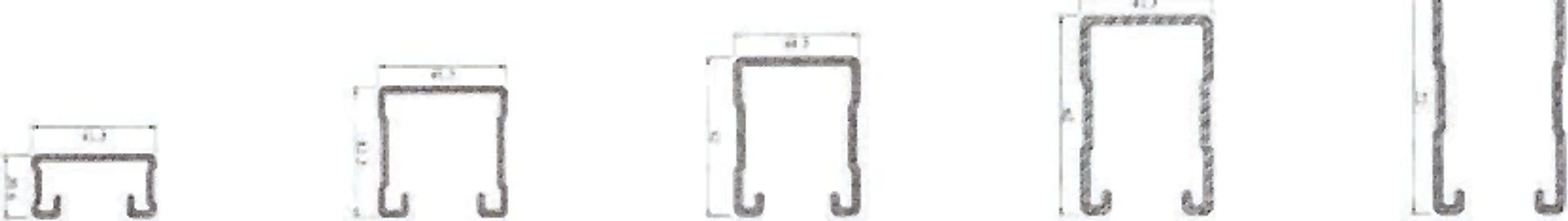

Single Channel — Model Table
14 catalogue items; "/T" denotes the 2.5 mm heavy gauge, "HDG" denotes hot-dip galvanized after fabrication.
| Item No. | Model | Wall Thickness (mm) | Section Height (mm) | Standard Length (m) |
|---|---|---|---|---|
| 10001 | Channel YE-21 | 2.0 | 21 | 3 / 6 |
| 10002 | Channel YE-21/T | 2.5 | 21 | 3 / 6 |
| 10003 | Channel YE-41 | 2.0 | 41 | 3 / 6 |
| 10004 | Channel YE-41/T | 2.5 | 41 | 3 / 6 |
| 10005 | Channel YE-52 | 2.5 | 52 | 3 / 6 |
| 10006 | Channel YE-62 | 2.5 | 62 | 3 / 6 |
| 10007 | Channel YE-72 | 2.75 | 72 | 3 / 6 |
| 11001–11007 | Channel YE-21 · HDG … YE-72 · HDG (incl. /T) | 2.0 – 2.75 | 21 – 72 | 3 / 6 |

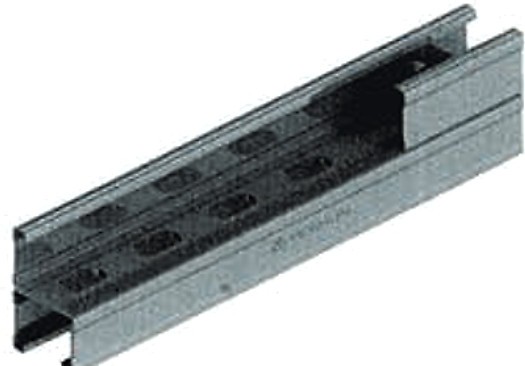

Back-to-Back Channel — Model Table
Two channels mechanically spliced or welded into a single deep section for heavy loads and long spans.
| Item No. | Model | Wall Thickness (mm) | Section Height (mm) | Standard Length (m) |
|---|---|---|---|---|
| 20001 | Channel YE-21D | 2.0 | 42 | 3 / 6 |
| 20002 | Channel YE-21D/T | 2.5 | 42 | 3 / 6 |
| 20003 | Channel YE-41D | 2.0 | 82 | 3 / 6 |
| 20004 | Channel YE-41D/T | 2.5 | 82 | 3 / 6 |
| 20005 | Channel YE-52D | 2.5 | 104 | 3 / 6 |
| 20006 | Channel YE-62D | 2.5 | 124 | 3 / 6 |
| 20007 | Channel YE-72D | 2.75 | 144 | 3 / 6 |
| 21001–21007 | Channel YE-21D · HDG … YE-72D · HDG (incl. /T) | 2.0 – 2.75 | 42 – 144 | 3 / 6 |
Section Properties & Material Data
Key mechanical values per profile; full section modulus tables are included in the downloadable catalog.
| Technical Data | YE-21 | YE-41 | YE-52 | YE-62 | YE-72 | YE-21D | YE-41D | YE-62D | YE-72D |
|---|---|---|---|---|---|---|---|---|---|
| Weight (kg/m) | 1.662 | 2.342 | 3.297 | 3.600 | 4.505 | 3.320 | 4.683 | 7.802 | 9.009 |
| Cross-section area (mm²) | 166.2 | 246.7 | 359.6 | 414.3 | 506.8 | 332.4 | 493.4 | — | 1013.6 |
| Yield strength (N/mm²) | 235 | 235 | 235 | 235 | 235 | 235 | 235 | 235 | 235 |
| Tensile/compression design value (N/mm²) | 205 | 205 | 205 | 205 | 205 | 205 | 205 | 205 | 205 |
| Shear design value (N/mm²) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Elastic modulus (N/mm²) | 210 000 | 210 000 | 210 000 | 210 000 | 210 000 | 210 000 | 210 000 | 210 000 | 210 000 |
| Shear modulus (N/mm²) | 81 000 | 81 000 | 81 000 | 81 000 | 81 000 | 81 000 | 81 000 | 81 000 | 81 000 |
| Surface | Passivated zinc coating 275 g/m² (≤20 μm); HDG / epoxy / stainless optional | ||||||||
| Standard length (m) | 3 / 6 | 3 / 6 | 3 / 6 | 3 / 6 | 3 / 6 | 3 / 6 | 3 / 6 | 3 / 6 | 3 / 6 |
Load Capacities

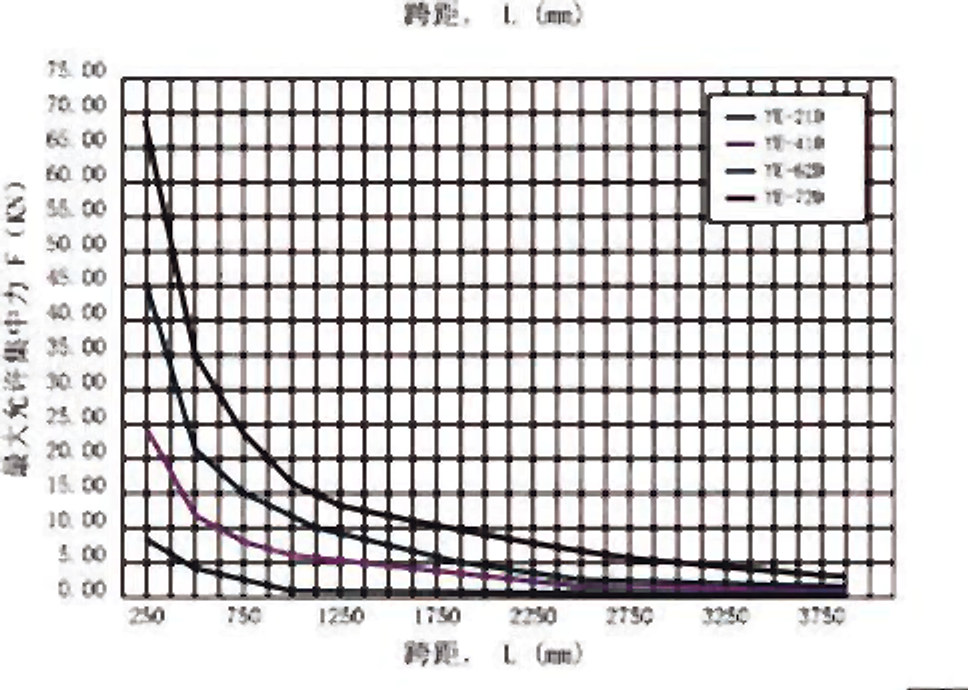

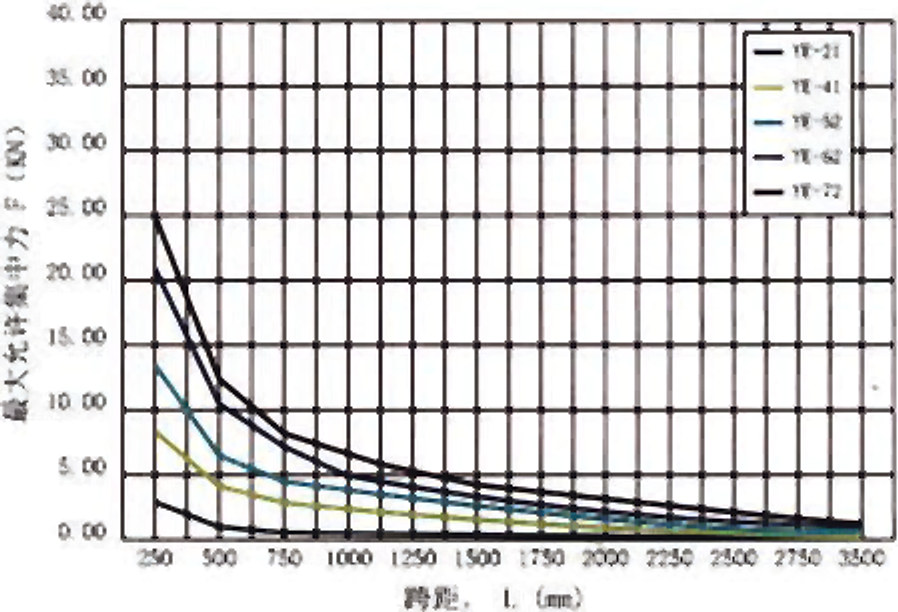

Allowable axial compression (kN) versus buckling length SK, and maximum simply-supported mid-span load F (kN) at deflection limit L/200.
| SK (mm) | YE-21 (kN) | YE-41 (kN) | YE-52 (kN) | YE-62 (kN) | YE-72 (kN) | YE-21D (kN) | YE-41D (kN) | YE-62D (kN) | YE-72D (kN) |
|---|---|---|---|---|---|---|---|---|---|
| 250 | 24.36 | 36.28 | 54.07 | 60.04 | 72.96 | 51.82 | 72.60 | 125.10 | 170.00 |
| 500 | 19.31 | 33.81 | 51.48 | 58.34 | 69.74 | 46.93 | 69.19 | 119.48 | 163.20 |
| 750 | 12.82 | 30.76 | 47.85 | 55.79 | 65.04 | 40.56 | 64.35 | 111.37 | 153.00 |
| 1000 | 8.13 | 26.93 | 43.44 | 48.33 | 59.39 | 32.67 | 58.51 | 101.58 | 134.87 |
| 1250 | 5.53 | 22.50 | 38.15 | 42.85 | 52.59 | 25.08 | 51.48 | 89.80 | 116.73 |
| 1500 | 3.97 | 18.22 | 32.40 | 37.24 | 45.08 | 19.15 | 43.82 | 76.86 | 97.47 |
| 1750 | 3.00 | 14.65 | 26.98 | 31.79 | 37.83 | 14.88 | 36.54 | 64.39 | 81.60 |
| 2000 | — | 11.87 | 22.36 | 26.52 | 31.51 | 11.80 | 30.32 | 53.58 | 66.87 |
| 2250 | — | 9.74 | 18.62 | 22.03 | 26.33 | 9.56 | 25.26 | 44.75 | 55.53 |
| 2500 | — | 8.11 | 15.65 | 18.85 | 22.19 | 7.89 | 21.24 | 37.68 | 47.60 |
| 2750 | — | 6.84 | 13.29 | 16.20 | 18.87 | 6.62 | 18.06 | 32.05 | 39.67 |
| 3000 | — | 5.85 | 11.40 | 13.51 | 16.21 | 5.63 | 15.49 | 27.52 | 34.00 |
| 3250 | — | 5.05 | 9.88 | 11.50 | 14.06 | — | 13.42 | 23.86 | 28.33 |
| 3500 | — | 4.39 | 8.64 | 10.18 | 12.29 | — | 11.73 | 20.86 | 24.93 |
| 3750 | — | — | 7.61 | 9.10 | 10.84 | — | 10.34 | 18.39 | 22.67 |
| 4000 | — | — | 6.75 | 8.00 | 9.62 | — | 9.17 | 16.32 | 20.40 |

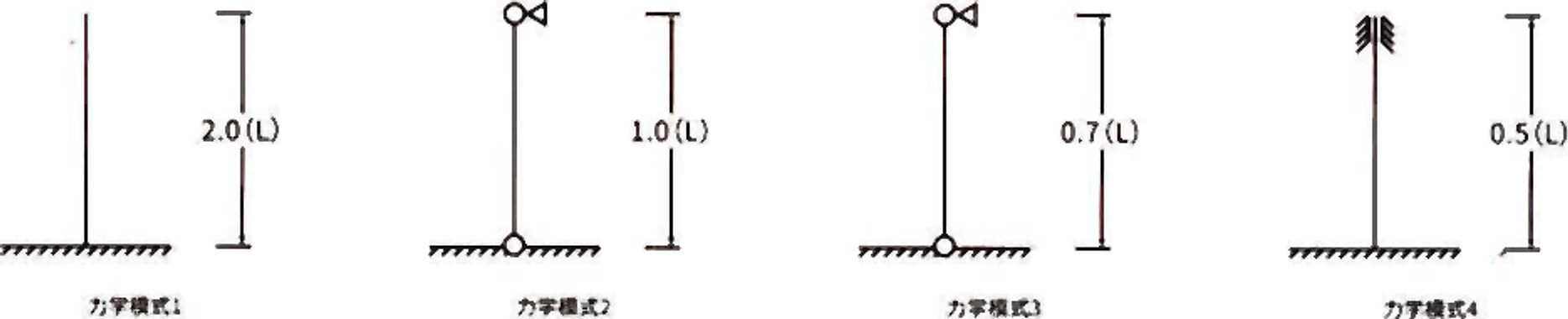

Buckling length conversion by end-support condition: 2.0 L / 1.0 L / 0.7 L / 0.5 L — see modes below.
Full Section Property & Load Tables
Download the complete Qinyu catalog — every profile dimension, section modulus and load chart in one PDF.
