Connectors, Brackets & Accessories
Every fitting needed to turn YE channels into a finished support system — angle connectors, splice plates, base plates, beam clamps, nuts, end caps, rod couplers and cantilever brackets, all with published loads.
Angle Connectors — YZL
Accurate positioning, connects channels and brackets; easy to adjust, dismantle and re-use.

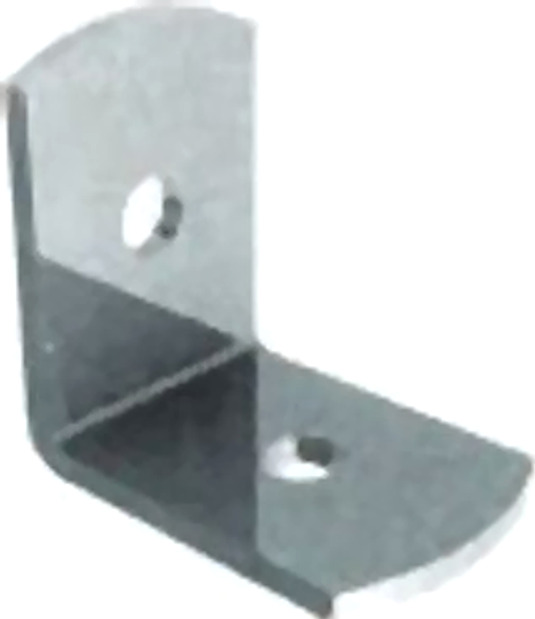

Angle Connector
YZL-2 · 31012
| Load | Torque | Thick. |
|---|---|---|
| 4.00 kN | 50 Nm | 4 mm |

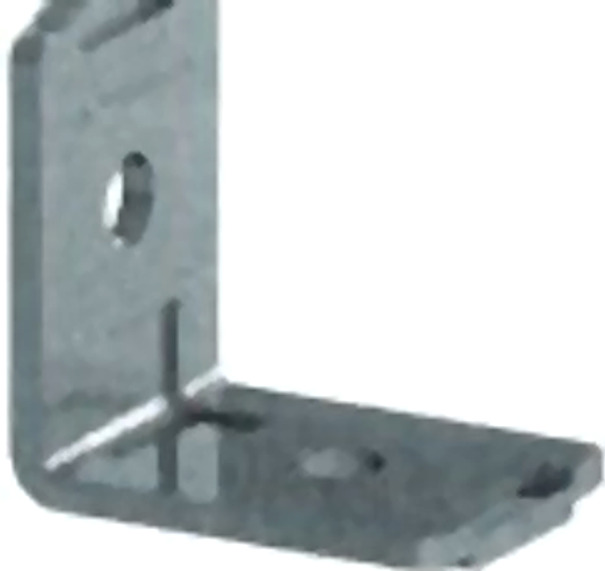

Angle Connector
YZL-2S · 31013
| Load | Torque | Thick. |
|---|---|---|
| 4.00 kN | 50 Nm | 4 mm |

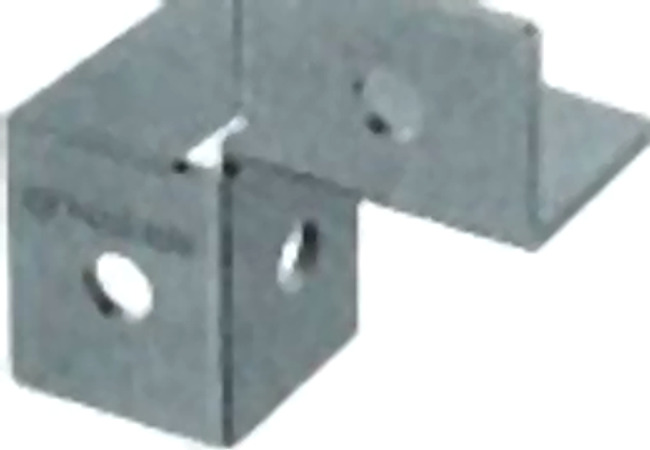

Double Angle Connector
YZL-2-2 · 31014
| Load | Torque | Thick. |
|---|---|---|
| 5.00 / 3.70 kN | 50 Nm | 4 mm |
Splice Plates, Channel Caps & Cap Plates
For different channel sizes and multi-directional joints; cap plates carry tension and shear together with other fittings.
Channel Splice Plate
YEC-21 … YEC-41×2 · 31022–31029
| YEC-21 | YEC-41 | YEC-52+ |
|---|---|---|
| 3.0 kN | 4.0 kN | 5.0 kN · 50 Nm |

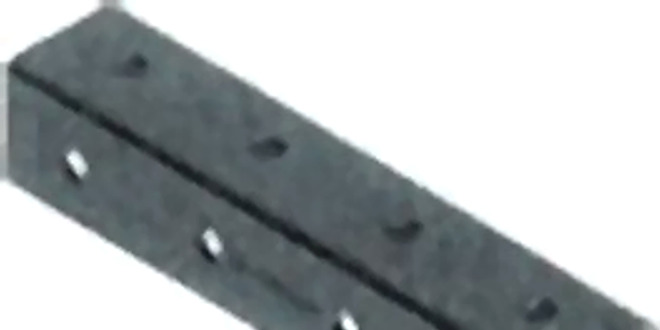

Flat Splice Plate
YEC-P4-4 · 31029
| Load | Torque | Thick. |
|---|---|---|
| 5.00 kN | 50 Nm | 4 mm |
Channel Cap Plate
YZL-CW-10 / -12 · YZL-SW-10 / -12 · 31001–31004
| Rod | Hole Ø | Thick. |
|---|---|---|
| M10 / M12 | 11.5 / 13.5 | 4 mm |
Base Plates & Pipe Cushions
Multi-face openings fix channels to walls, floors and ceilings; cushions lock pipes and fittings to the channel with anti-vibration performance.
Base Plate
YEP-2 · 31030
| Load | Torque | Thick. |
|---|---|---|
| 7.00 kN | 50 Nm | 4 mm |

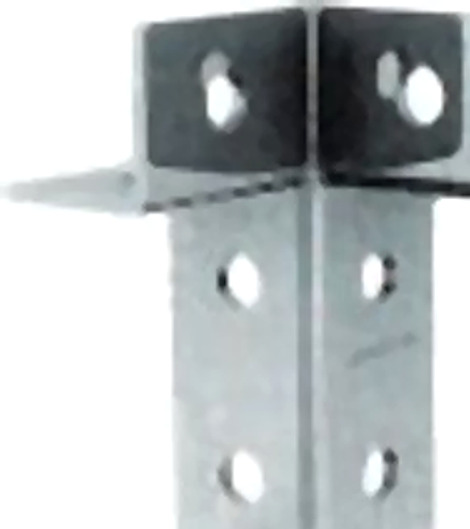

3D Base Plate
YEP-2/3D · 31032 | YEP-3/3D · 31033
| Load | Torque | Thick. |
|---|---|---|
| 2.50 kN | 50 Nm | 4 mm |

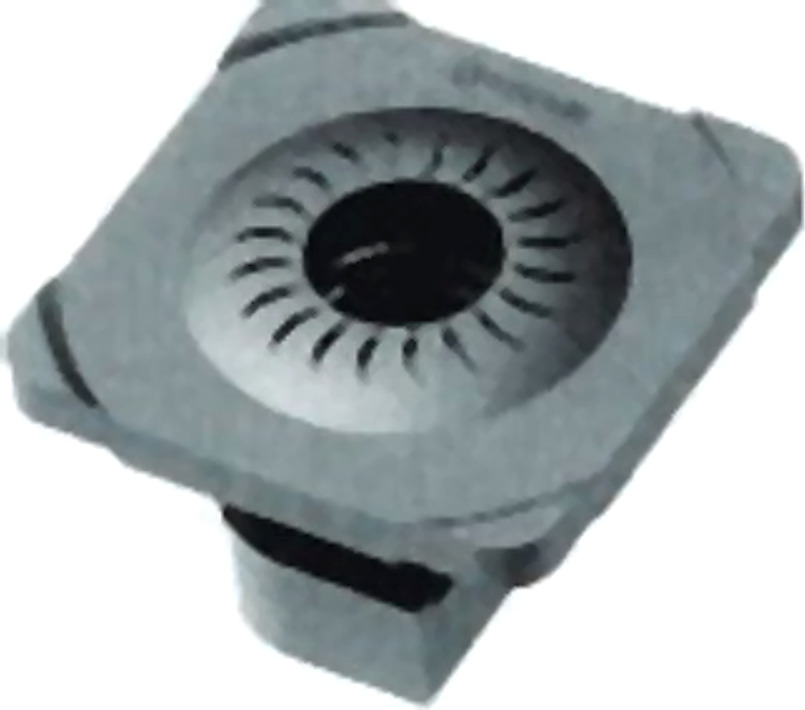

Pipe Cushion
YEA-PRS-M8 / M10 / M12 · 41005–41007
| Model | Load (kN) | Torque |
|---|---|---|
| M8 | 5.0 / 8.0 | 18 Nm |
| M10 / M12 | 5.0 / 8.0 | 31 Nm |
Beam Clamps
Weld-free, drill-free attachment to standard steel flanges — repositionable, with fine length adjustment of the suspended channel.
Beam Clamp (Channel)
YET-21-41 · 31045 | YET-41-82 · 31046
| Model | Load | Torque | Thick. |
|---|---|---|---|
| YET-21-41 | 3.00 kN | 10 Nm | 5 mm |
| YET-41-82 | 4.50 kN | 20 Nm | 6 mm |

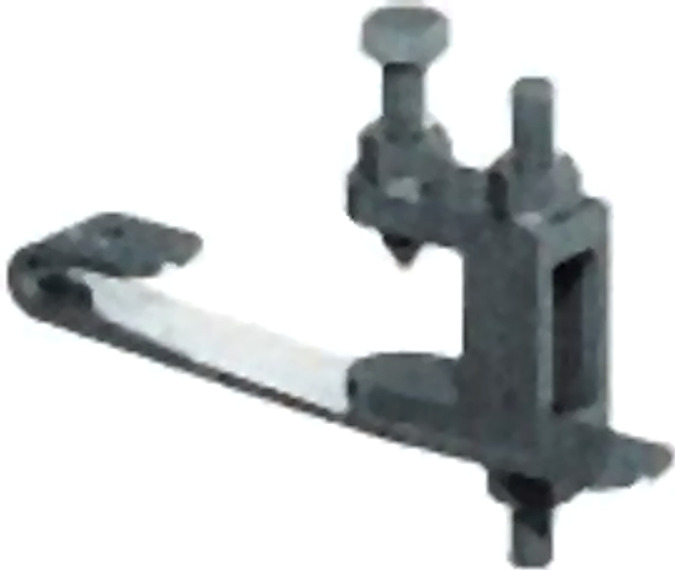

Steel-Structure Beam Clamp
YET-BC-M8 / M10 / M12 · 31051–31053
Ductile iron, electro or hot-dip galvanized; hook-type parts made to order.
| M8 | M10 | M12 |
|---|---|---|
| 1.2 kN | 2.5 kN | 3.5 kN |
Rod Diagonal Fitting
YEL-Q1 · 31041
| Load | Torque | Thick. |
|---|---|---|
| 7.00 kN | 50 Nm | 4 mm |
Channel Nuts, End Caps & Rod Couplers
Small parts that finish the system — available electro-galvanized, Dacromet, hot-dip or stainless SS304/SS316; end-cap colors customizable.
Plastic-Wing Channel Nut
YE-CN-M10 · 41001 | YE-CN-M12 · 41002
| Load | Torque |
|---|---|
| 5.00 kN | 40 Nm |

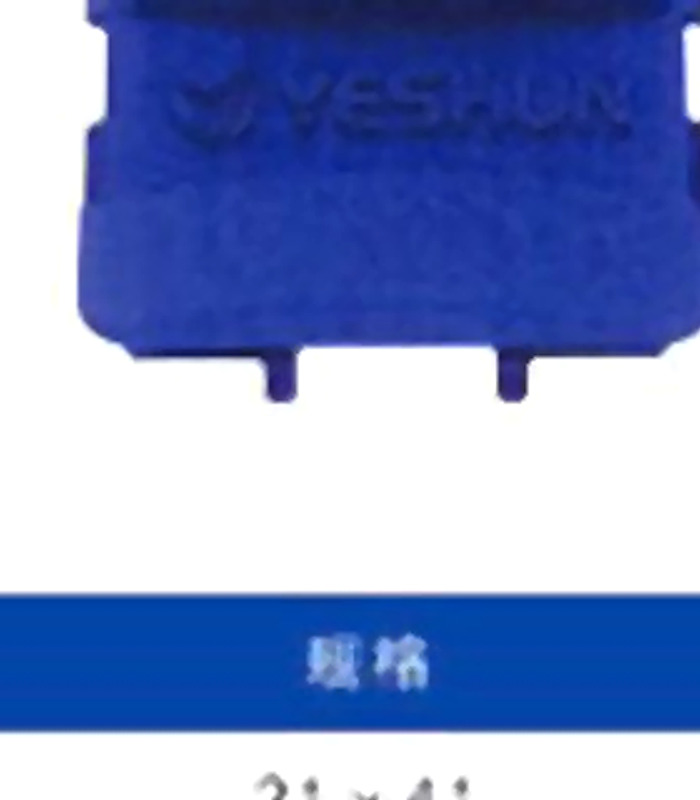

Channel End Cap
YEL-E21 – E72 · 41009–41013
Fits 21×41 to 72×41 channel ends; colors to order.

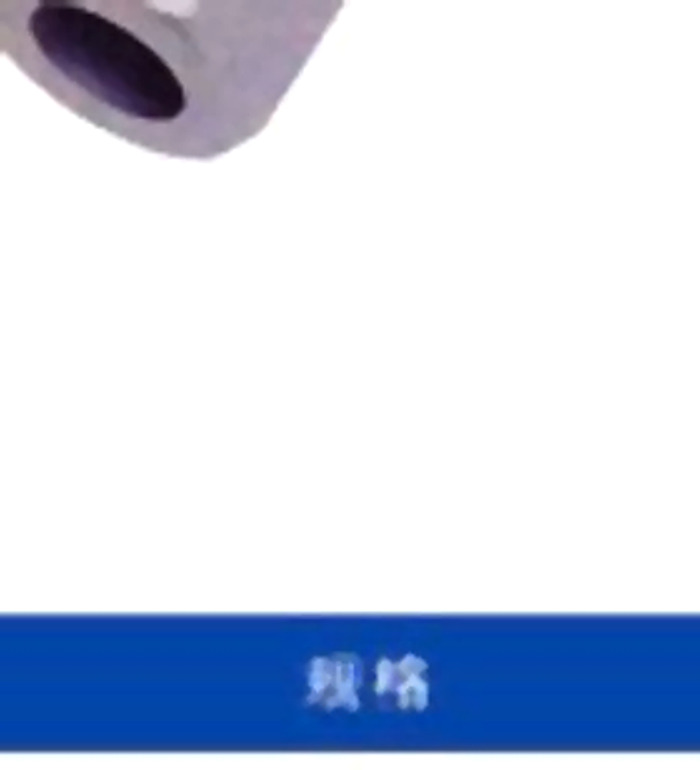

Hex Rod Coupler
HEX COUPLER M10 / M12 / M16 · 41028
Center stop as position limit; joins full-thread rods.

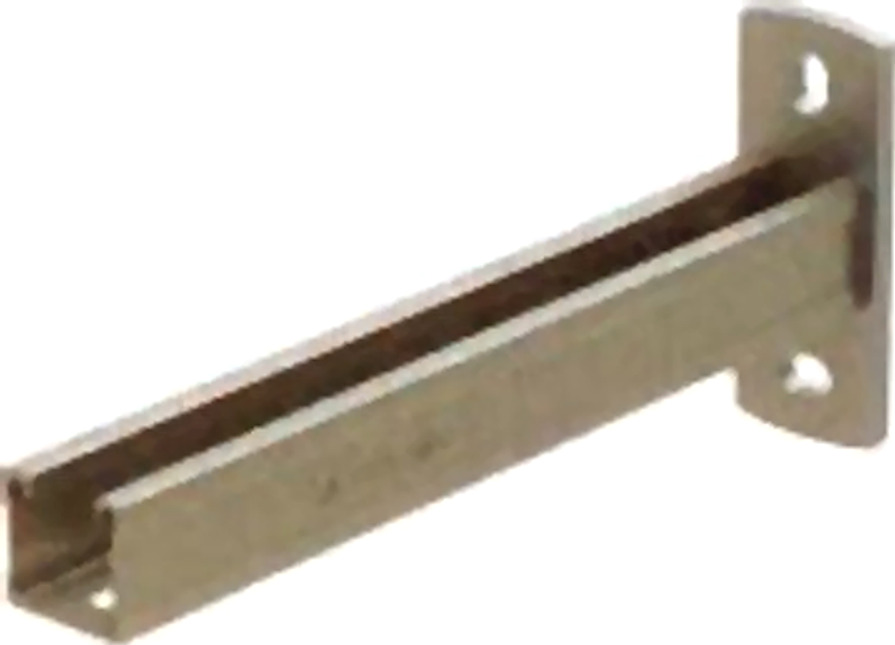

Cantilever Brackets — YET
Serrated channel edge, axial stiffeners and machine-welded joints for high capacity; slotted holes ease installation and length can be made to order.
| Item No. | Model | Section H (mm) | Arm (mm) | Hole Pitch (mm) |
|---|---|---|---|---|
| 81001 | Bracket YET-21/300 | 21 | 300 | 80 |
| 81002 | Bracket YET-21/450 | 21 | 450 | 80 |
| 81003 | Bracket YET-41/300 | 41 | 300 | 80 |
| 81004 | Bracket YET-41/450 | 41 | 450 | 80 |
| 81005 | Bracket YET-41/600 | 41 | 300 / 600 | 80 |
| 81008 | Bracket YET-52/450 | 52 | 450 / 600 | 120 |
| 81010 | Bracket YET-72/600 | 72 | 300 / 600 | 120 |
Full Accessory Catalog
Every connector, load value and finish option is in the downloadable Qinyu catalog PDF.
