Seismic Bracing Connectors & Kits
Prefabricated anti-seismic connectors, adjustable hinges and diagonal braces for lateral and longitudinal restraint of pipes, ducts and cable trays — design loads up to 13 kN per connector, engineered to GB 50981-2014.

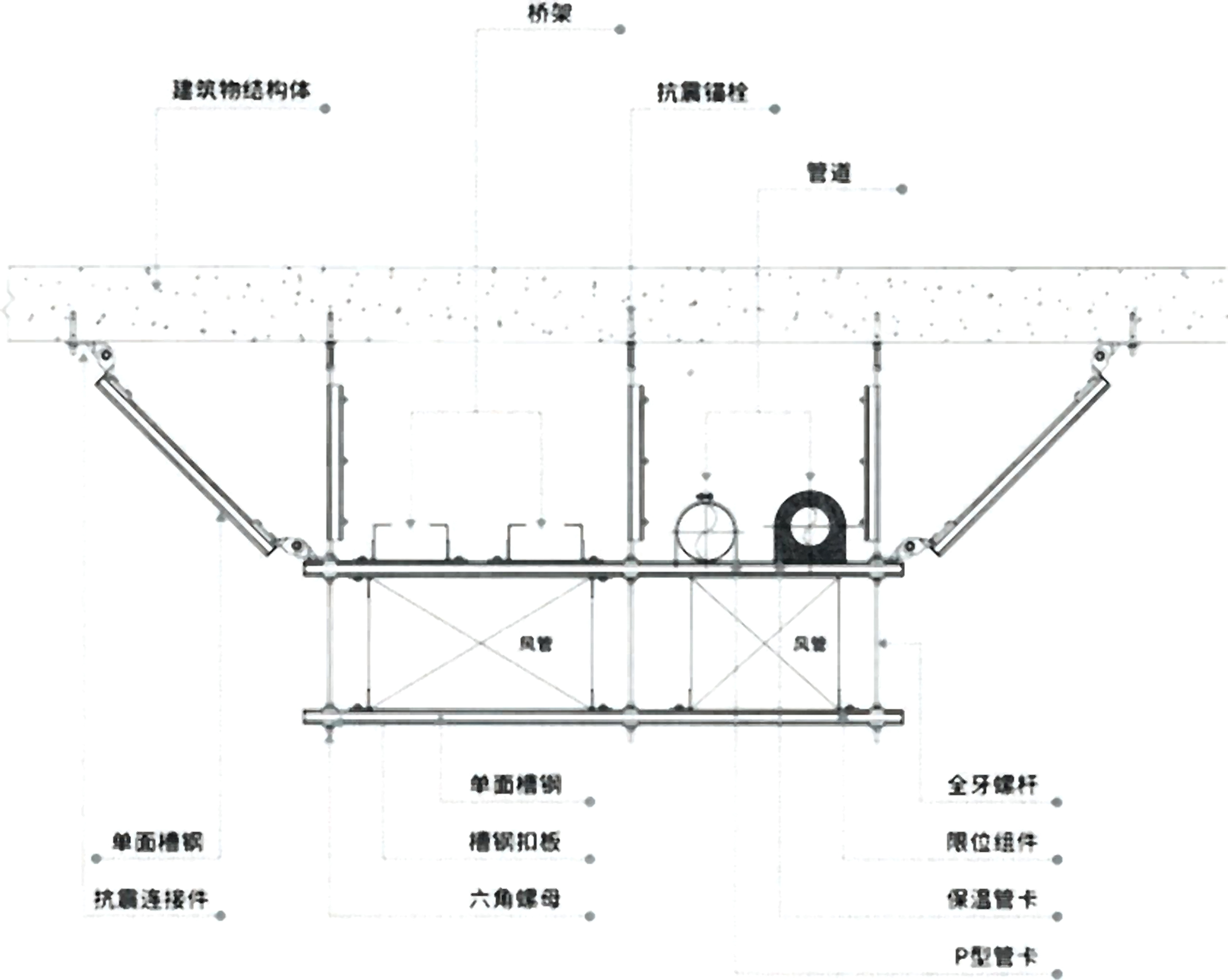

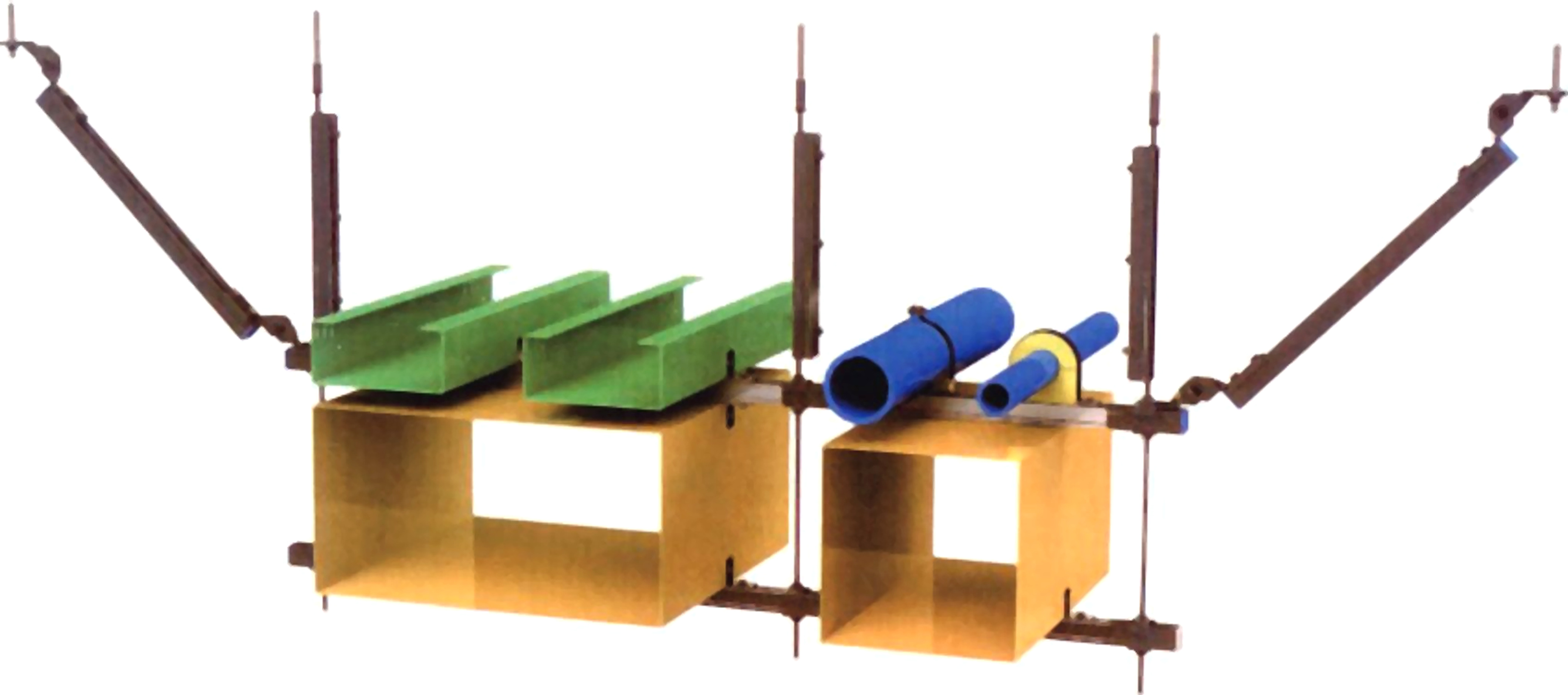

How the System Fits Together
A Qinyu seismic assembly anchors the building structure, braces the service load and restrains the services — every part is a finished component, no welding required on site.
- Structure side: building structure, seismic anchor bolts, single channels
- Connection side: anti-seismic connectors, adjustable hinges, diagonal braces, hex nuts
- Service side: cable tray, ducts and pipework held by channel caps, limit components, insulation clamps and P-type clamps
- Rods: full-thread rods with rod stiffeners for vertical hangers
Bracing Components
All connectors are Q235B steel (GB/T 700-2006) with electro-galvanized + sealant, hot-dip galvanized, epoxy-coated or stainless finish.

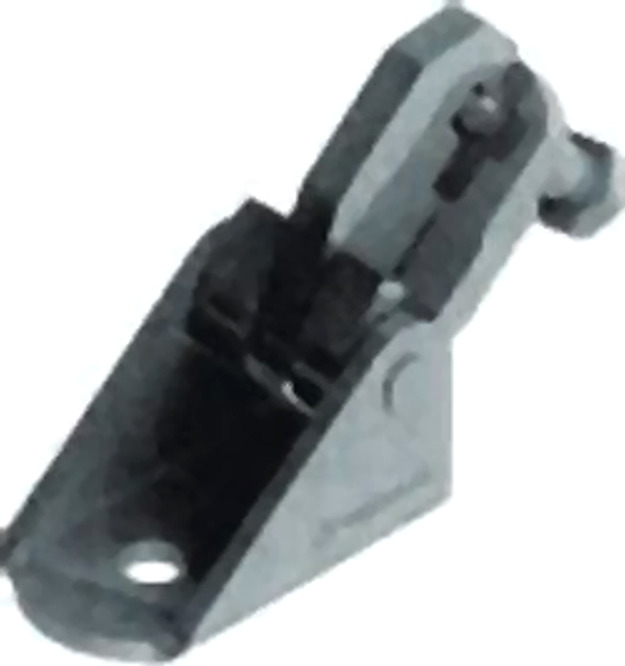

Anti-Seismic Connector A
YEZ-SP-S · M12 · 13 kN
Universal design fits any structure; simplifies installation and inspection of lateral and longitudinal bracing.

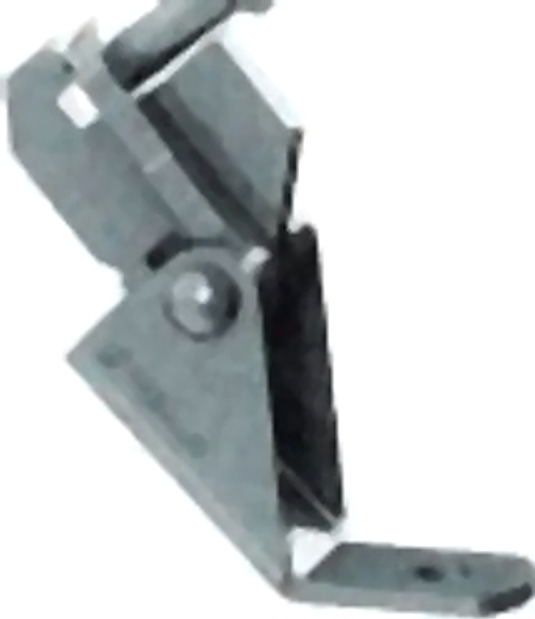

Anti-Seismic Connector B
YEZ-SP-T · M12 · 13 kN
Top-mount variant for direct attachment to structural steel and concrete substrates.

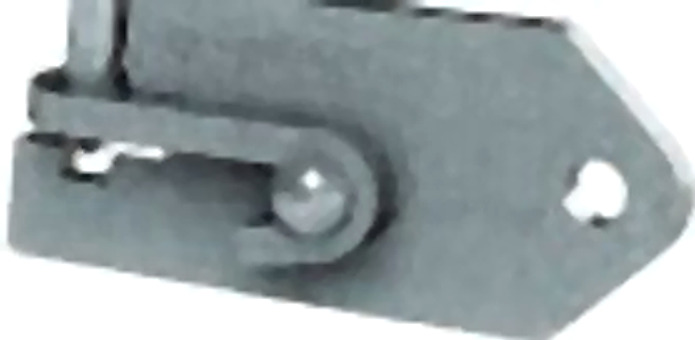

Anti-Seismic Connector L
YEZ-SP-L · M12 · 13 kN
Angle base for inclined braces; saves installation time and cost.

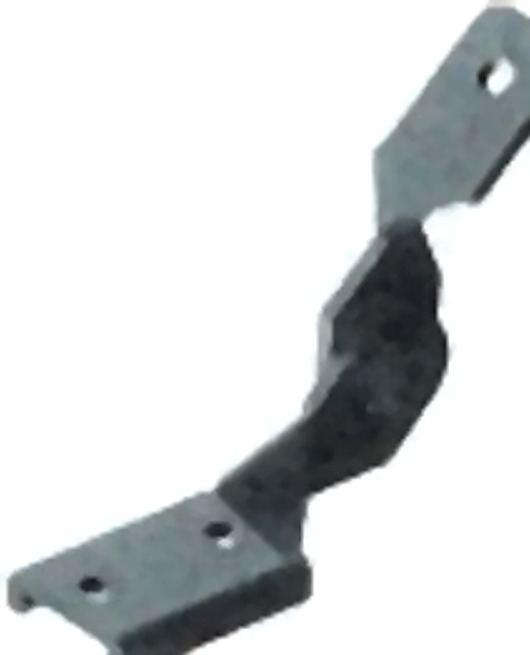

Adjustable Hinge A
YEZ-AB-A · M12 · 8.5 kN
Articulated joint for bracing angles; simplifies alignment on site.

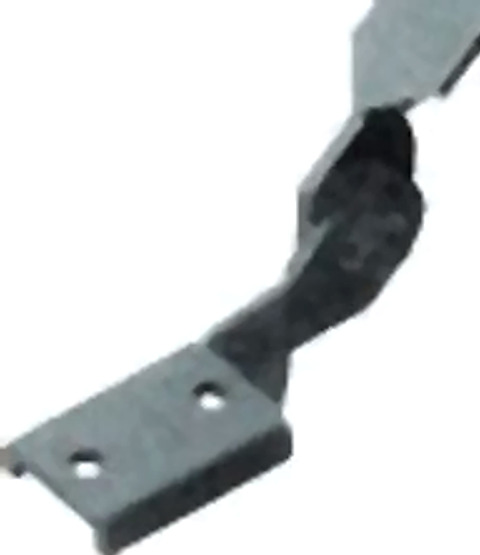

Adjustable Hinge B
YEZ-AB-B · M12 · 8.5 kN
Alternative geometry for reversed brace orientations.

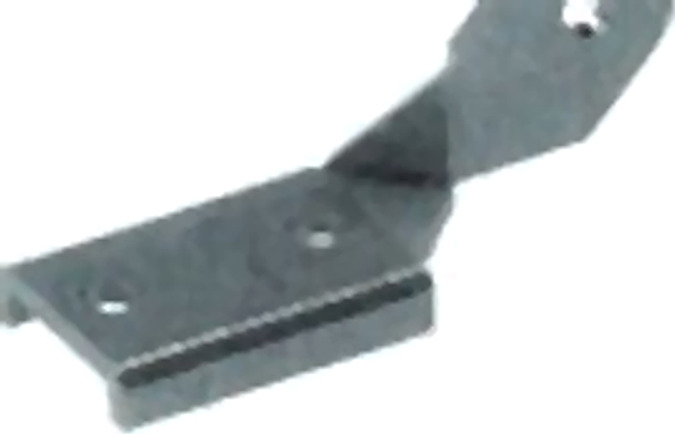

Seismic Diagonal Brace
YEZ-B · M12 · 8.5 kN
Ready-made diagonal member for lateral and longitudinal restraint.

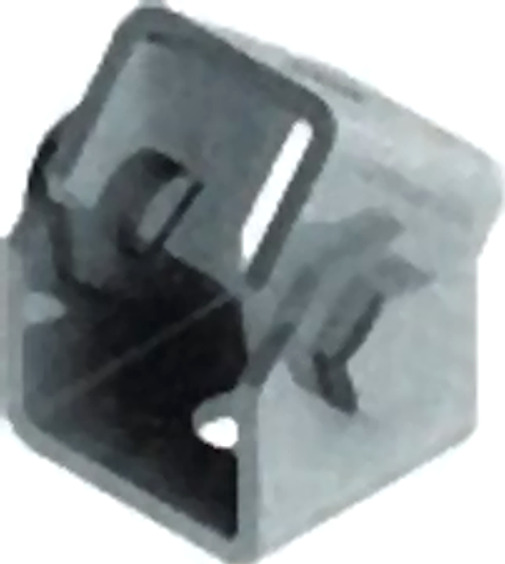

Rod Diagonal Fitting
YEL-Q1 · M12 · 7.0 kN · 50 Nm
Fixes channel steel to vertical hanger rods; accepts M12 rods, customization available.

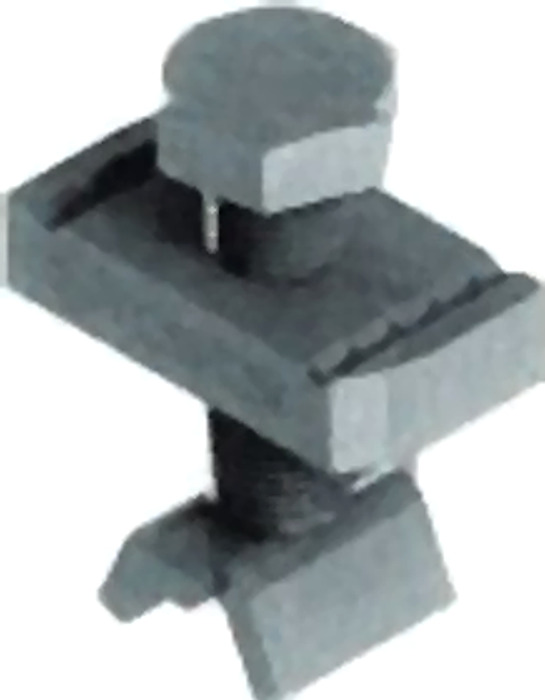

Rod Stiffener
YEZ-RS · M12 (M16)
Stiffens the hanger rod connection of vertical seismic supports.

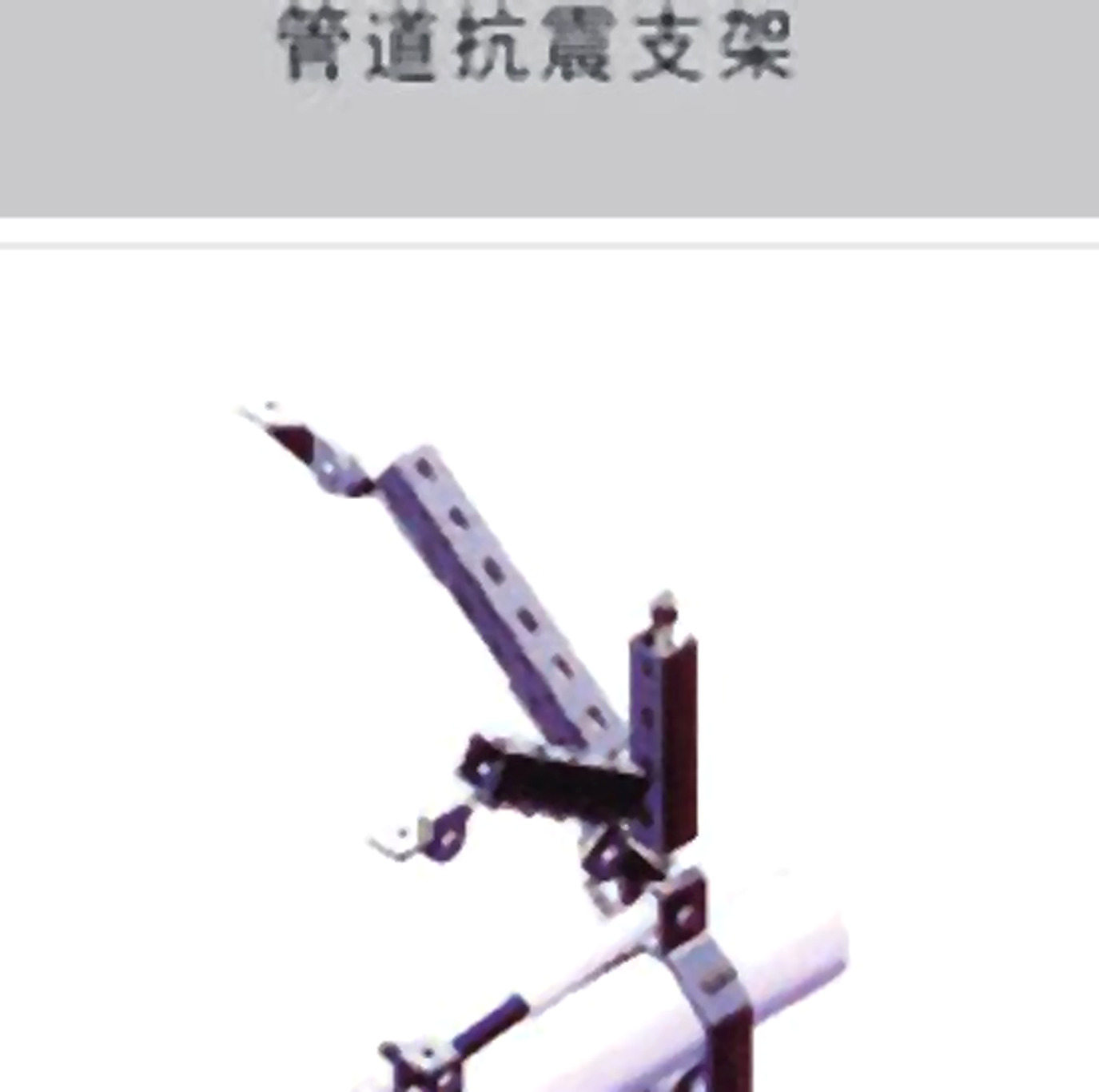

Assembled Pipe Brace
YED pipe clamps + YEZ kit
Complete lateral / longitudinal brace for DN65–DN200 pipework.
Where GB 50981-2014 Requires Seismic Bracing
- Suspended equipment with a weight greater than 1.8 kN
- Domestic water and fire-protection piping systems above DN65
- Duct systems with rectangular sections ≥ 0.38 m² or round ducts ≥ 0.7 m diameter
- Electrical conduit above DN60 and cable ladder / trunking / busway over 150 N/m
- Smoke-exhaust and emergency ventilation ducts and related equipment
Design covers three steps: hanger layout, seismic action calculation, and verification of braces, rods, connections and anchors.
| Service Category | Condition | Lateral (m) | Longitudinal (m) |
|---|---|---|---|
| Water, hot water & fire mains | Rigid metallic piping, new builds | 12 | 24 |
| Water, hot water & fire mains | Flexible / non-metallic / composite piping | 6 | 12 |
| Gas & heating pipelines | Fuel oil, gas, medical gas, vacuum, compressed air, steam, hot water & hazardous gas lines | 6 | 12 |
| Ventilation & smoke exhaust | Rigid ducts, new builds | 9 | 18 |
| Ventilation & smoke exhaust | Non-metallic ducts, new builds | 4.5 | 9 |
| Conduits, cable tray & trunking | Rigid metallic, new builds | 12 | 24 |
| Conduits, cable tray & trunking | Non-metallic, new builds | 6 | 12 |
Maximum spacing of seismic supports per GB 50981-2014.

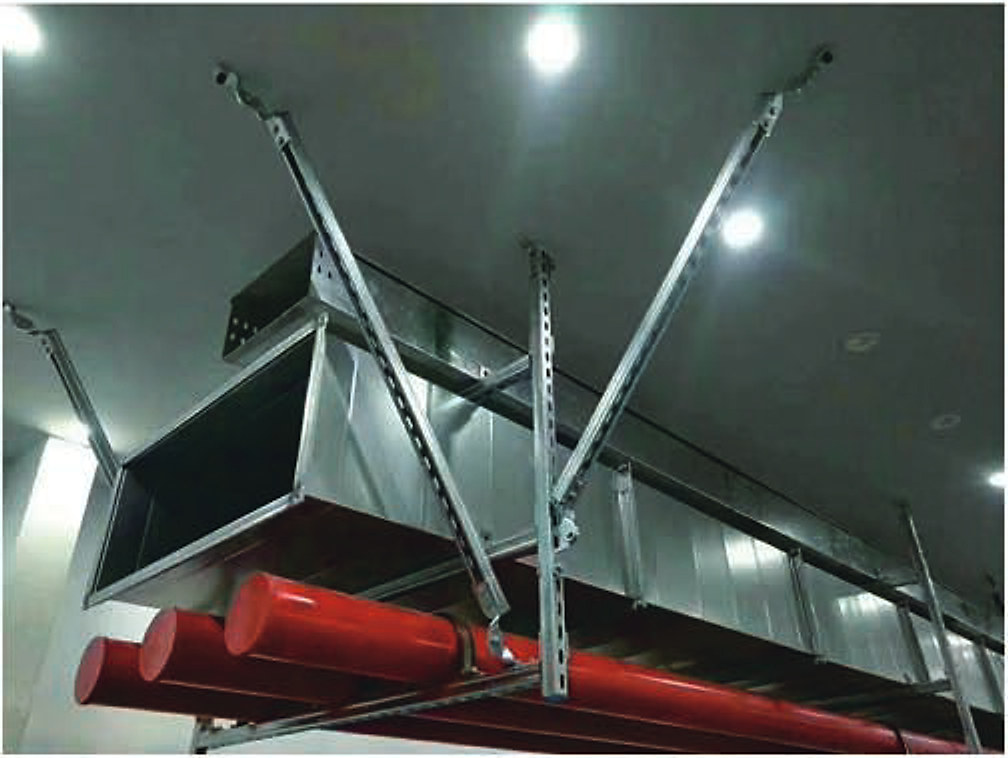

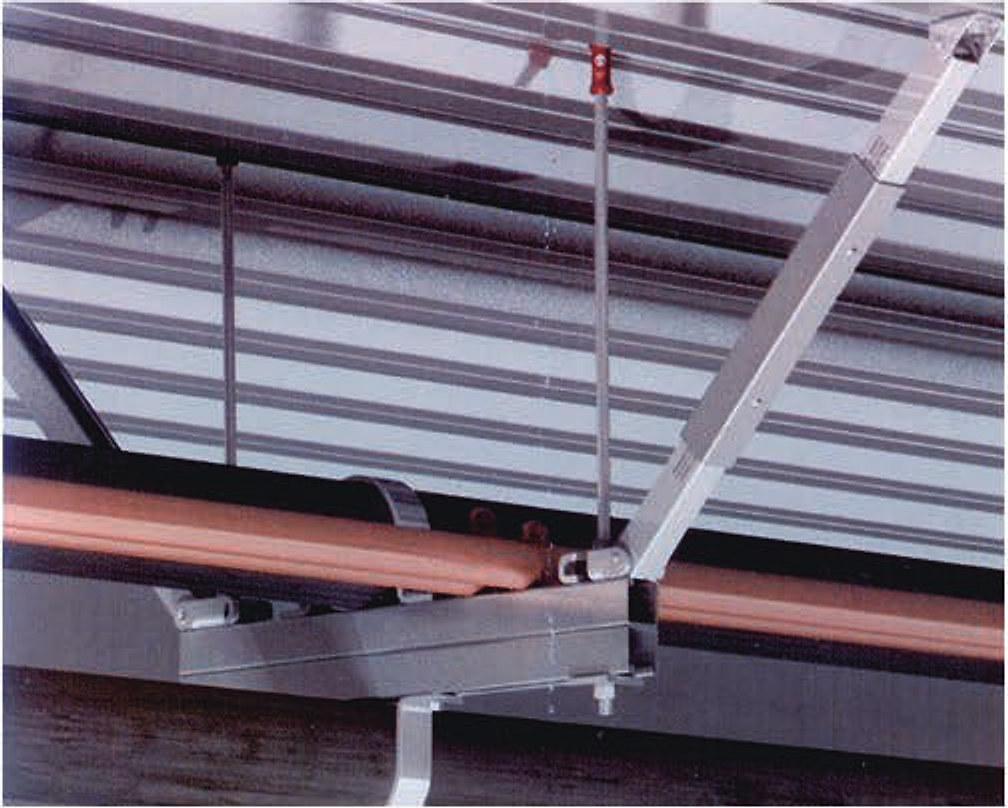

Installed on Site
