Pipe Clamps for DN25 – DN250
Hanger, P-type, split, brace-mounted, adjustable and Omega clamps with design loads from 2.7 to 14.9 kN — EPDM-lined versions reduce noise, insulation versions protect hot and cold services.

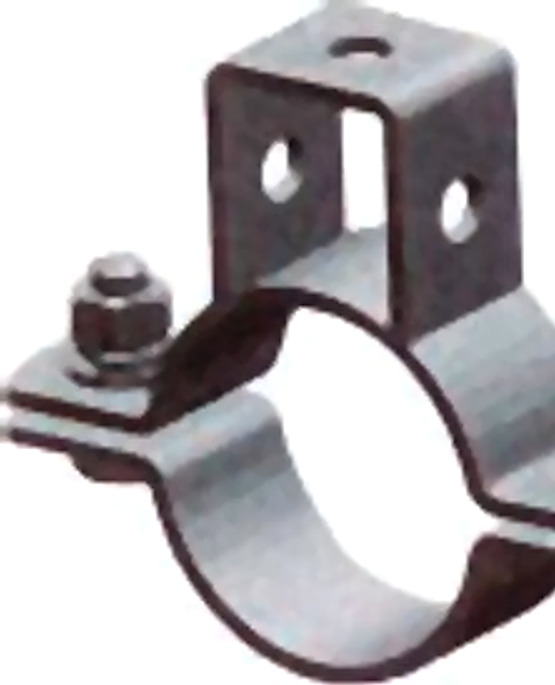

Hanger-Type Seismic Clamp — YED
Connects to axial and lateral bracing; accepts standard threaded rods and channels. For DN65–DN200 services.
| Item No. | Model | Clamping Range (mm) | Design Load (kN) | DN |
|---|---|---|---|---|
| 51901 | Clamp YED-065 | 72 – 77 | 6.6 | 65 |
| 51902 | Clamp YED-080 | 87 – 93 | 6.6 | 80 |
| 51903 | Clamp YED-100 | 114 – 118 | 8.1 | 100 |
| 51904 | Clamp YED-125 | 138 – 144 | 8.1 | 125 |
| 51905 | Clamp YED-150 | 164 – 170 | 14.9 | 150 |
| 51906 | Clamp YED-200 | 219 – 228 | 14.9 | 200 |

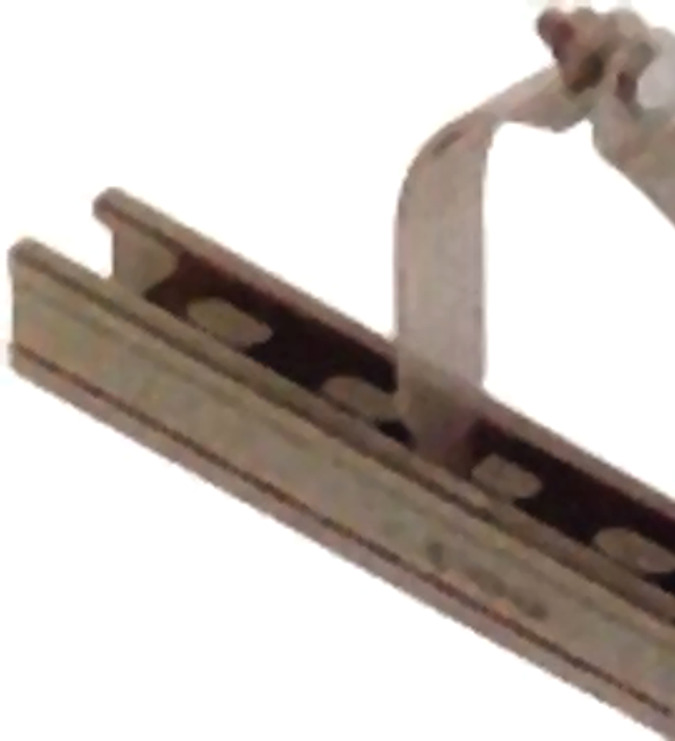

P-Type Clamps — YEP / YEPC
Tool-free installation without channel nuts; narrow-spacing pipe runs. The EPDM-lined YEPC version lowers noise. Special sizes on request.
| YEP | YEPC (EPDM) | Clamping Range (mm) | Design Load (kN) | ≈ DN |
|---|---|---|---|---|
| YEP-025 · 51006 | YEPC-025 · 51106 | 33 – 37 | 2.7 | 25 |
| YEP-032 · 51007 | YEPC-032 · 51107 | 42 – 46 | 2.7 | 32 |
| YEP-040 · 51008 | YEPC-040 · 51108 | 47 – 51 | 3.6 | 40 |
| YEP-050 · 51009 | YEPC-050 · 51109 | 57 – 61 | 3.6 | 50 |
| YEP-065 · 51010 | YEPC-065 · 51110 | 72 – 77 | 3.6 | 65 |
| YEP-080 · 51011 | YEPC-080 · 51111 | 87 – 93 | 3.6 | 80 |
| YEP-090 · 51012 | YEPC-090 · 51112 | 98 – 104 | 4.4 | 90 |
| YEP-100 · 51013 | YEPC-100 · 51113 | 114 – 118 | 4.4 | 100 |
| YEP-125 · 51014 | YEPC-125 · 51114 | 138 – 144 | 4.4 | 125 |
| YEP-150 · 51015 | YEPC-150 · 51115 | 164 – 170 | 4.4 | 150 |
| YEP-200 · 51016 | YEPC-200 · 51116 | 219 – 228 | 4.4 | 200 |
| YEP-250 · 51017 | YEPC-250 · 51117 | 273 – 282 | 4.4 | 250 |
Split Clamps — YEPO (Standard & EPDM-Lined)
Two-piece clamp for axial and lateral bracing connections; fits standard rods and channels, DN65–DN200. EPDM lining available for the same sizes (item series 515101–515106).
| Item No. | Model | Clamping Range (mm) | Design Load (kN) | DN |
|---|---|---|---|---|
| 515001 | Clamp YEPO-065 | 72 – 77 | 9.5 | 65 |
| 515002 | Clamp YEPO-080 | 87 – 93 | 9.5 | 80 |
| 515003 | Clamp YEPO-100 | 114 – 118 | 9.5 | 100 |
| 515004 | Clamp YEPO-125 | 138 – 144 | 9.5 | 125 |
| 515005 | Clamp YEPO-150 | 164 – 170 | 9.5 | 150 |
| 515006 | Clamp YEPO-200 | 219 – 228 | 9.5 | 200 |

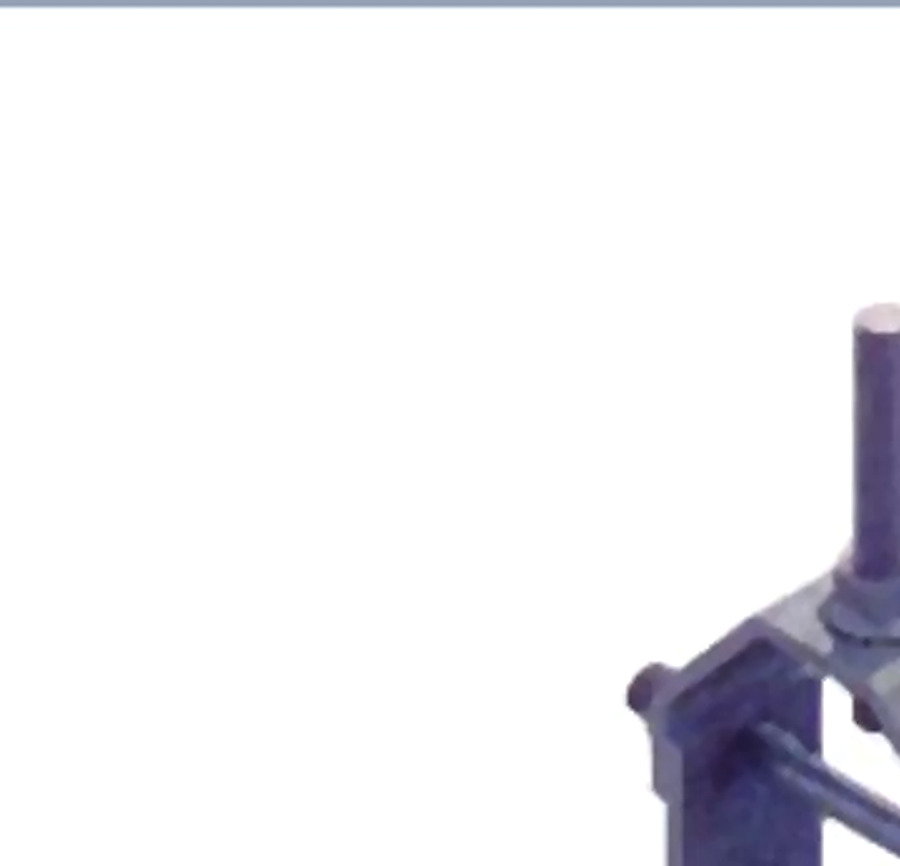

Brace-Mounted Clamps — YED (Standard & EPDM-Lined)
Integrated top stud accepts diagonal braces directly — the fastest way to build a code-compliant seismic restraint (item series 519001–519006; EPDM 519101–519106).
| Model | Clamping Range (mm) | Design Load (kN) | DN |
|---|---|---|---|
| YED-065 | 72 – 77 | 6.6 | 65 |
| YED-080 | 87 – 93 | 6.6 | 80 |
| YED-100 | 114 – 118 | 8.1 | 100 |
| YED-125 | 138 – 144 | 8.1 | 125 |
| YED-150 | 164 – 170 | 14.9 | 150 |
| YED-200 | 219 – 228 | 14.9 | 200 |

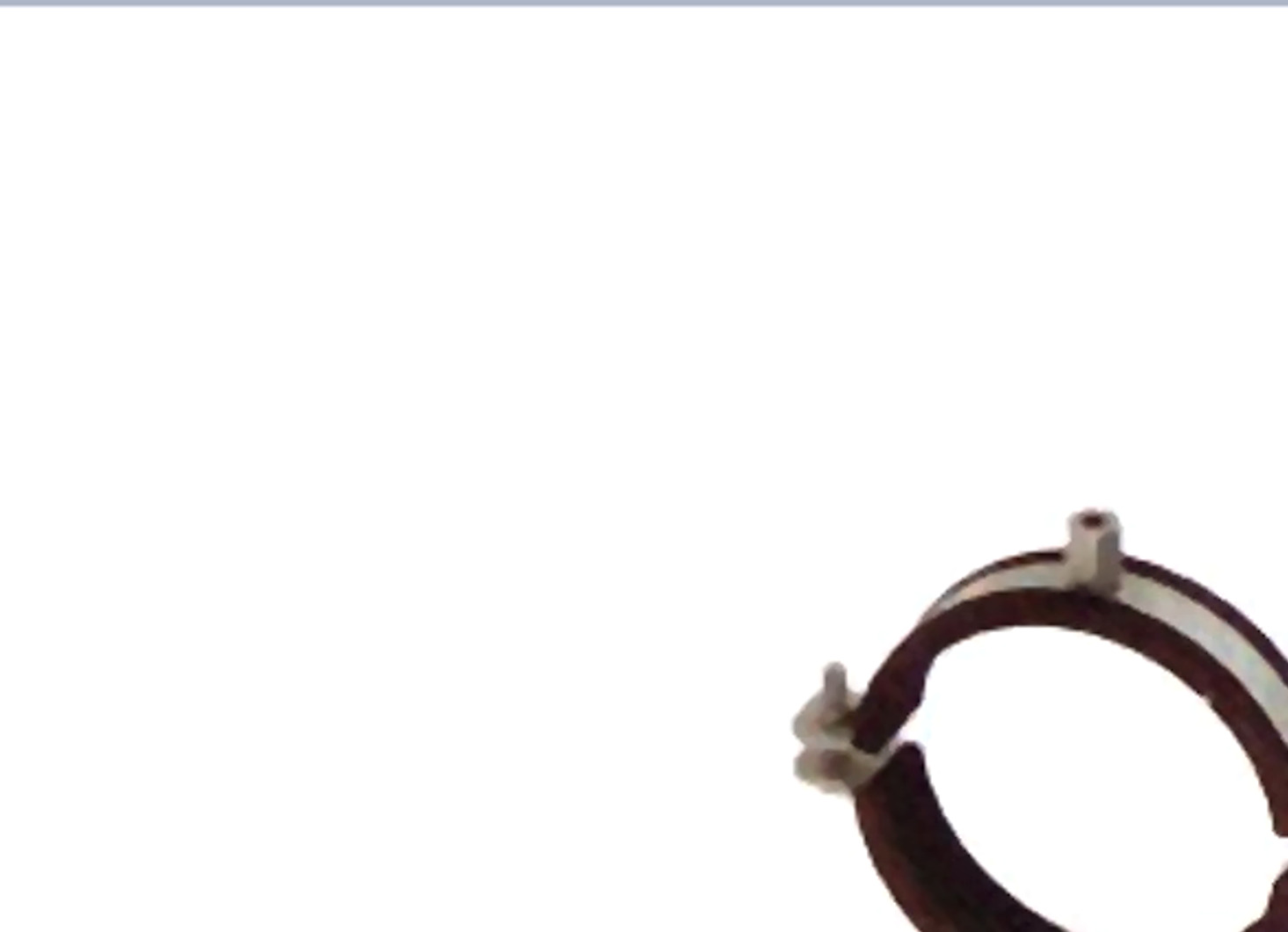

Adjustable Clamps — YEO / YEO-H
For fire mains, HVAC water, sprinkler, hot water and process piping; assembles with channel systems into complete gas-pipe support runs. EPDM lining lowers noise.
| Item No. | Model | Clamping Range (mm) | Material (mm) | Rod | ≈ DN |
|---|---|---|---|---|---|
| 510303 | YEO-025 | 33 – 37 | 1.25 × 20 | M8 + M10 | 25 |
| 510304 | YEO-032 | 42 – 46 | 1.25 × 20 | M8 + M10 | 32 |
| 510305 | YEO-040 | 47 – 51 | 1.25 × 20 | M8 + M10 | 40 |
| 510306 | YEO-050 | 57 – 61 | 1.50 × 20 | M8 + M10 | 50 |
| 510307 | YEO-065 | 72 – 77 | 1.50 × 20 | M8 + M10 | 65 |
| 510308 | YEO-080 | 87 – 93 | 1.50 × 20 | M8 + M10 | 80 |
| 510309 | YEO-H-100 | 114 – 118 | 3.00 × 32 | M12 | 100 |
| 510310 | YEO-H-125 | 138 – 144 | 3.00 × 32 | M12 | 125 |
| 510311 | YEO-H-150 | 164 – 170 | 3.00 × 32 | M12 | 150 |
| 510312 | YEO-H-200 | 219 – 228 | 3.00 × 32 | M12 | 200 |

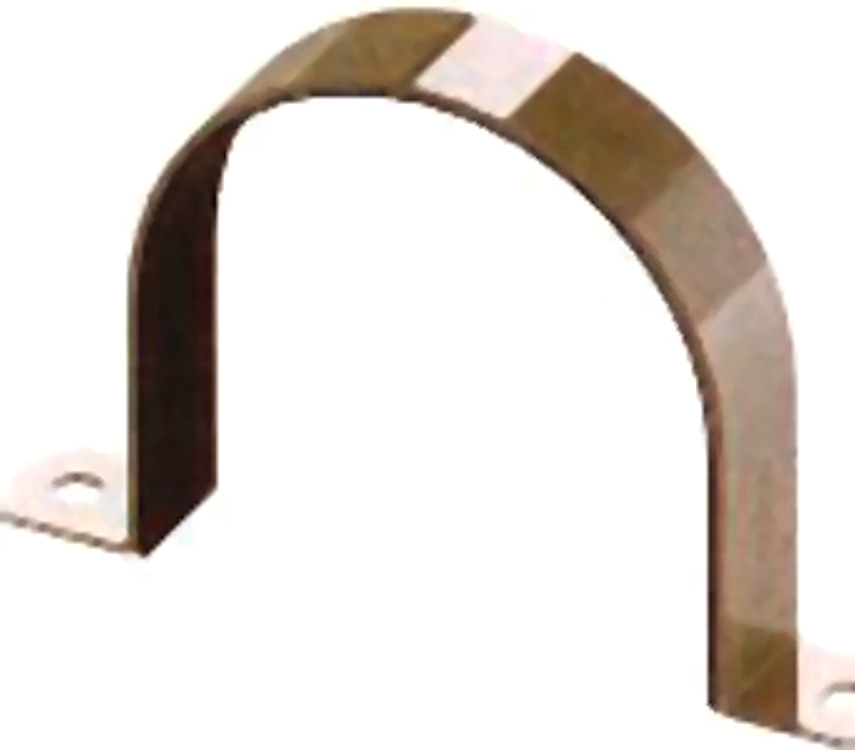

Omega Clamps — YES (Standard & EPDM-Lined)
Mounts directly onto horizontal or vertical structures without a channel — the simplest fixing for DN65–DN200 runs.
| Item No. | Model | Clamping Range (mm) | Design Load (kN) | DN |
|---|---|---|---|---|
| 518001 | Clamp YES-065 | 72 – 77 | 2.7 | 65 |
| 518002 | Clamp YES-080 | 87 – 93 | 2.7 | 80 |
| 518003 | Clamp YES-100 | 114 – 118 | 3.2 | 100 |
| 518004 | Clamp YES-125 | 138 – 144 | 3.2 | 125 |
| 518005 | Clamp YES-150 | 164 – 170 | 3.2 | 150 |
| 518006 | Clamp YES-200 | 219 – 228 | 4.3 | 200 |

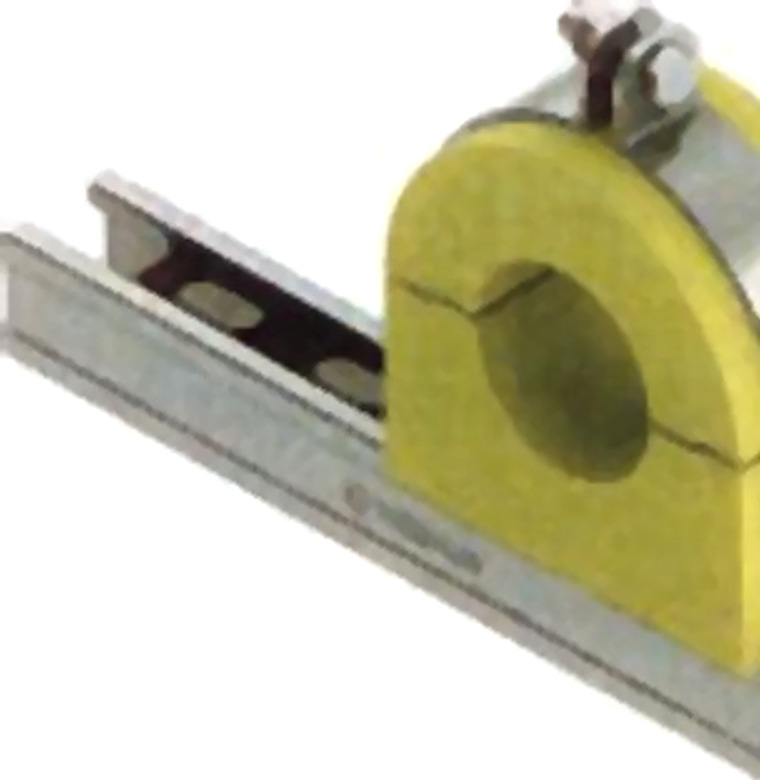

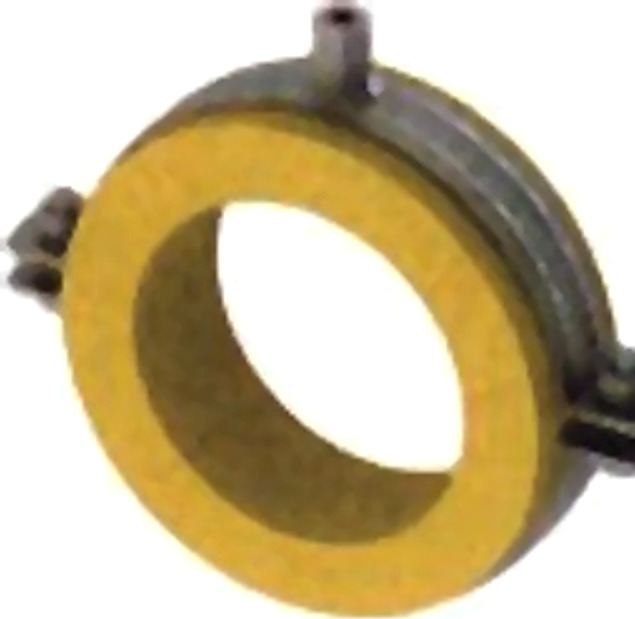

Insulation Clamps — YEOR (Standard & Seat-Type)
For insulated hot, cold and process lines: clamp rides on the insulation layer with configurable thickness. Insulation densities 160 / 300 kg/m³, layer thickness 25–50 mm — custom combinations welcome.
| Model (example) | ≈ DN | Insulation (mm) | Density (kg/m³) |
|---|---|---|---|
| YEOR-22 · 51401 / 51202 | 22 | 25 / 30 | 160 |
| YEOR-34 · 51403 / 51206 | 32 | 25 / 30 | 160 |
| YEOR-48 · 51405 / 51210 | 40 | 25 / 30 | 160 |
| YEOR-60 · 51406 / 51212 | 57 | 30 / 40 | 160 |
| YEOR-89 · 51409 / 51214 | 80 | 30 / 40 | 160 |
| YEOR-114 · 51410 / 51216 | 100 | 30 / 40 | 160 |
| YEOR-140 · 51412 / 51218 | 125 | 30 / 40 | 160 |
| YEOR-168 · 51414 / 51220 | 150 | 30 / 40 | 160 / 300 |
| YEOR-219 · 51415 / 51221 | 200 | 50 | 160 / 300 |
Full size list from YEOR-22 to YEOR-219 (15 sizes per series) in the catalog.
Which Clamp Fits Your Line?
Send us the pipe schedule (medium, DN, insulation, load path) and we will return a clamp selection with anchors and bracing within 24 hours.
